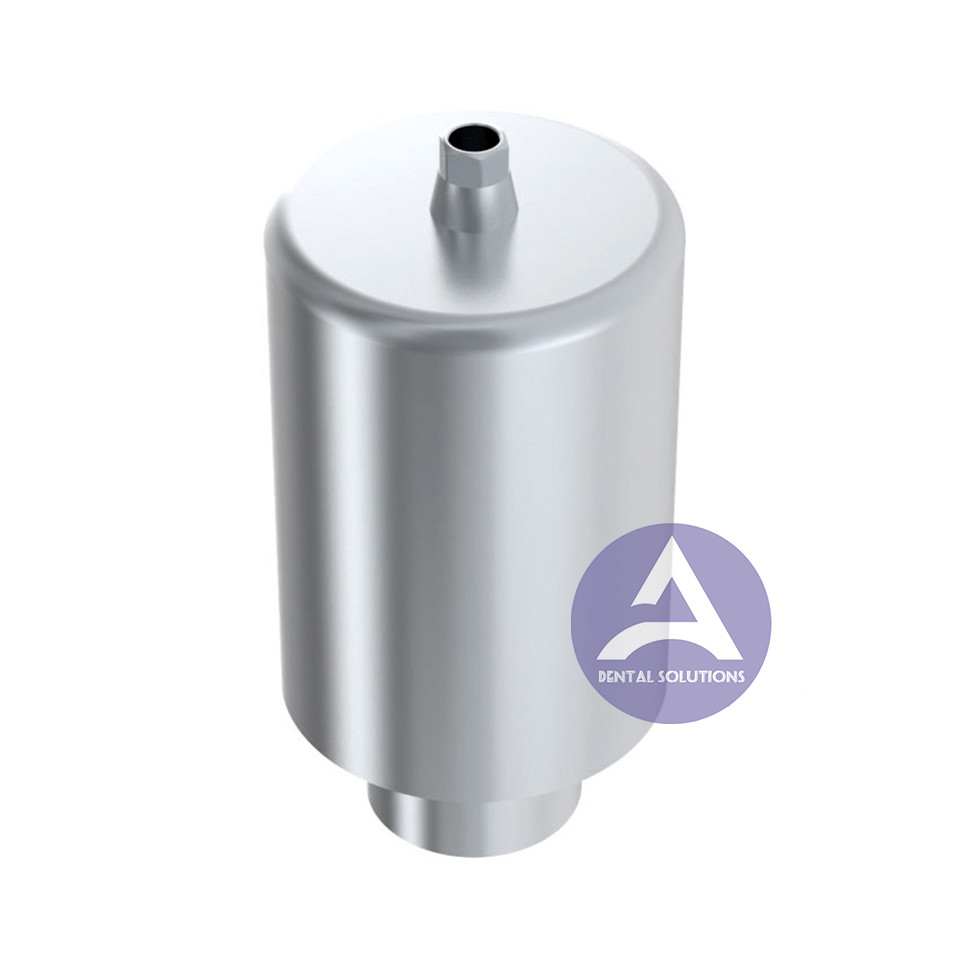

Astra Tech OsseoSpeed® Implant Internal Titanium Premill Blank 14mm Engaging NP(3.0) / RP(3.5/4.0) / WP(4.5/5.0)

Astra Tech OsseoSpeed® Implant Internal Titanium Premill Blank 14mm Engaging

Yellow(NP 3.0mm) / AQUA(RP 3.5/4.0mm) / LILAC(WP 4.5/5.0mm)

Material:
Ti 6AI-4V ELI (Supply from Germany)

Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm

Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.

Approved by CE, ISO 9001, ISO 13485

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.

Points of Astra OsstoSpeed Dental Implant:

OsseoSpeed™ TX S

The grade 4 titanium implants are machined with a parallel geometry and a tapered apex. Surface texturing is achieved through titanium oxide particle blasting and a fluoride surface (Fig.4) additive to enhance osseointegration. Two outside tread patterns are machined on to the implant body consisting of micro threads at the coronal portion and a regular thread pattern on the main portion of the implant. The implant/abutment interface connection is constructed as a internal, double hex conical connection, allowing 12 different positions for final abutments.


Astra does provide some color coding in regards to implant or platform diameter on some of the actual components, in some instances color coding is only provided on the component packaging. Four different implant diameters (Fig.1) with 3 implant/abutment platform connection diameters (Fig.2) are offered for this system. 3.0mm (yellow), 3.5mm/4.0mm (aqua) and 5.0mm (lilac). Implants with a crestal diameter of 3.5mm and 4.0mm share the same prosthetic components (aqua). 5.0mm implants share the same prosthetic components as well (lilac). 3.0mm diameter implants are available in lengths of 11mm, 13mm and 15mm. 3.5 diameter implants are provided in lengths of 8, 9, 11, 13, 15 and 17mm. 4.0 diameter implants are offered in an additional length of 6mm. 5.0 diameter implants are available in lengths of 9, 11, 13, 15 and 17mm.

OsseoSpeed™ TX

The grade 4 titanium implants are machined with a parallel main body geometry with a crestal conical portion and a tapered apex (Fig.3). Surface texturing is achieved through titanium oxide particle blasting and a fluoride surface additive (Fig.4) to enhance osseointegration. Two outside tread patterns are machined on to the implant body consisting of micro threads at the coronal conical portion and a regular thread pattern on the main portion of the implant. The implant/abutment interface connection is constructed as a internal, double hex conical connection, allowing 12 different positions for final abutments.
